LN8313 Series 12S Drone Motor (85KV / 95KV / 100KV) - 4kg eiice

Descriptio

The LN8313 Series 12S Brushless Drone Motor designatus est summus potentiae UAV applicationes tradens eximiam observantiam et constantiam. Available in 85KV, 95KV, 100KV optiones , haec motoria est specimen pro magnis multirotoribus quaerunt fugam validam et stabilem. Cum a* maxime impulsus 4kg * , praestantiorem potestatem praebet ad consequat aerias professionales, fuci onerarias et operationes graves levare UAV.

Constructis materiae premium et technologiae flexibus provectis, LN8313 efficit vis efficiens output, operatio lenis et calor excellentis dissipationis . Consilium robustum praestat diuturnitatem diuturnitatem et constantem observantiam sub condiciones fugae exposcens, eamque certam electionem facit pro aedificatoribus tam amatae quam industrialis fucus..

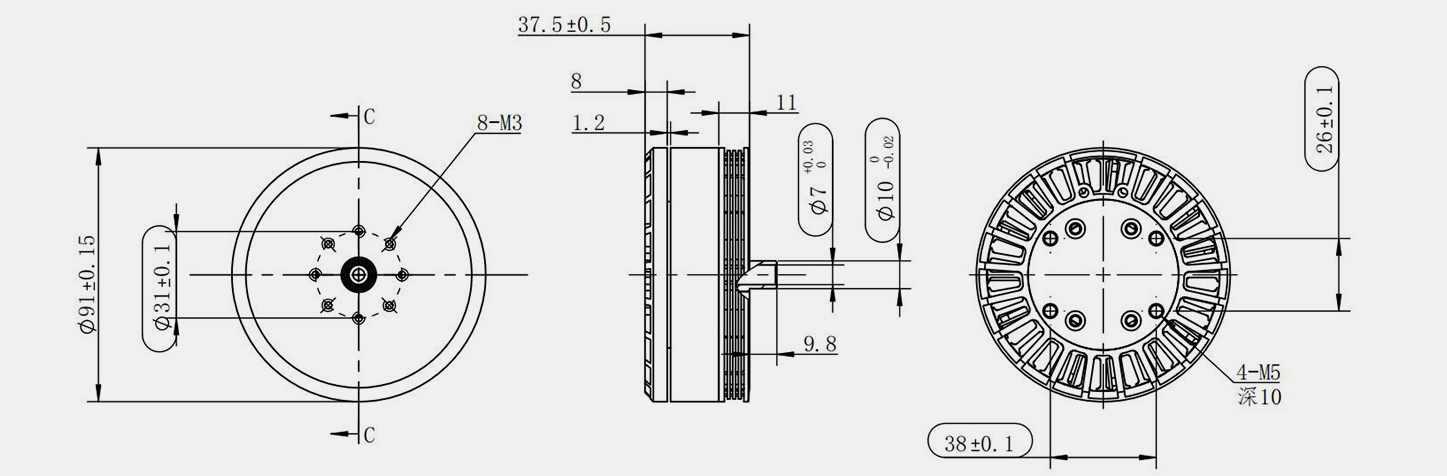

2D&3D

Retek

Parameter
Inquisitionis

Electric Spec.

Pugna Spec.

Max.Thrust Force

(KG)

Recom.Takeoff Wlght

(KG)

Systema Pondere

(KG)

Max.Current

(A)

Max.Con.Current

(A)

Motor Dim.

(mm)

Statoris Dim.

(mm)

Adscendens Dim.

(mm)

Prop.

(inch)

100

12-14

15.5

5-7

0.65

91*37.5

83*13

8-M3*10

3011

Mitte Testis Data
Propeller	U(V)	Iugulare (%)	Mitte (g)	I(A)	P(W)	Effectus (g/W)
3011	46.05	40%	2530	4.6	211.6	14.7
	46.02	46%	3373	6.6	303.6	12.3
	46.03	48%	3675	8.3	381.8	10.6
	46.03	56%	4845	11.0	506	9.5
	46.03	60%	5610	13.6	625.6	8.7
	46.01	66%	6728	16.0	736	8.0
	46.0	70%	7348	20.0	920	7.4
	45.99	74%	8338	24.0	1104	7.0
	46.0	78%	9100	27.2	1251.2	6.6
	46.01	80%	9613	29.6	1361.6	6.2
	45.98	90%	12100	41.3	1899.8	5.9
	45.9	95%	13350	46.6	2143.6	5.3
	45.85	100%	14499	52.3	2405.8	4.9
