LN4214 380KV 6-85 UAV Brushless Motor For 13 Inch Racing Fuci

Descriptio

LN4214 380KV 6-85 UAV Motor Brushless motor summus perficientur est specialiter pro 13 inch racing fuci. Iniectis technologiae motoriis adhibitis, efficientiam, stabilitatem et constantiam praebet, ut operationem diuturnam sub gravi onere perficiat, potentiam fuci curriculi professionalis requisita implens.

Maximum Efficientiam: Brushless motor technicae artis reduces friction mechanica, augens efficientiam.
Fortis Stabilitas: Celeritas 380KV et princeps Aureus output obtinent praestantem stabilitatem in cursu currendi.
Diuturnitatem: Optimized consilium motorem longam magni oneris operationis sustinendi, condiciones fugae vehemens aptas.
Strong Compatibility: Designatur 13-inch fuci, offerens praecisam potestatem ad optimum fugae effectum.

LN4214 380KV 6-85 UAV Motor Brushless late in fucis currendo adhibetur, praesertim cum arto 13 pollicis. Est specimen pro summus intensionis fucus curricula eventus. Cum sua altissima efficacia et validissima output, velox responsionem et praecisam potestatem praebet, fugae stabilitatem et celeritatem procurans.

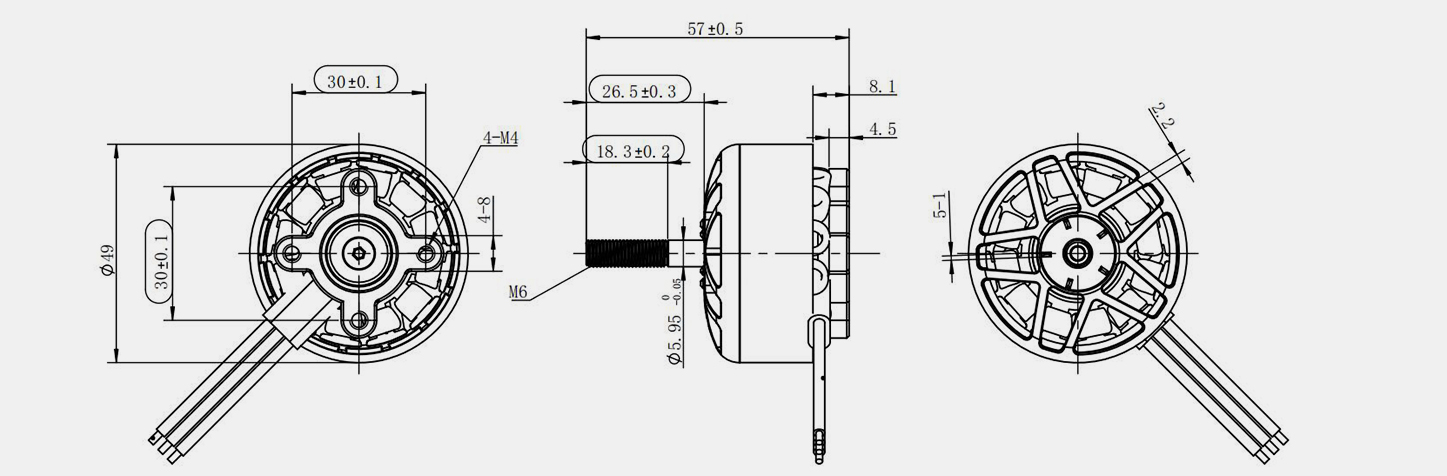

2D&3D

Retek

Parameter
Inquisitionis

Electric Spec.
Maximilianus. P (W)	Voltage (V)	Maximilianus. Et ego. A)	KV	Nullus onus Current (A)		Resistentia (mΩ)		Poloni		Motor Dim. (mm)		Statoris Dim. (mm)		Adscendens (mm)	N.W. (g)	Prop. (inch)
2121	24	34	380	1.5		576		14		φ49*32.5		φ42*14		M4-30*30	235	13"~15"
Mitte Testis Data
Propeller	KV Value	Throttle (%)		Voltage (V)	Current (A)		Celeritas (RPM)		Mitte Force (KG)		Torque (N.M)		Input Power (W)		Efficientia (G/W)
GEMFAN 1308*3	380kV	10%		24	0.184		859		0.0279		0.010		4.4		6.309
		20%		23.99	0.623		1788		0.1207		0.031		14.9		8.082
		30%		23.99	1.437		2708		0.2961		0.072		34.5		8.600
		40%		23.98	2.588		3536		0.5128		0.116		62		8.278
		L%		23.96	4.434		4393		0.7981		0.179		106.2		7.525
		60%		23.94	7.498		5286		1.1673		0.258		179.5		6.508
		70%		23.92	11.142		6106		1.5620		0.344		266.5		5.864
		80%		23.89	15.405		6835		1.9759		0.433		368		5.370
		90%		23.85	20.898		7573		2.4480		0.534		498.5		4.911
		100%		23.81	26.668		8213		2.8856		0.630		635.1		4.544
GEMFAN 1310*3	380kV	10%		24.01	0.18		847		0.0239		0.014		4.3		5.539
		20%		24	0.708		1781		0.1251		0.042		17		7.367
		30%		23.99	1.668		2664		0.3160		0.093		40		7.900
		40%		23.98	3.104		3458		0.5413		0.152		74.4		7.278
		L%		23.96	5.481		4293		0.8513		0.2310		131.3		6.490
		60%		23.99	9.362		5159		1.2510		330		224.1		5.585
		70%		23.98	13.856		5924		1.6492		0.437		331.3		4.979
		80%		23.95	19.353		6644		2.1044		0.549		462		4.555
		90%		23.93	25.502		7287		2.5593		0.666		607.8		4.211
		100%		23.88	32.034		7869		2.9946		0.768		762.1		3.929
GEMFAN 1310*3	640kV	10%		24.81	0.409		1336		0.0768		0.0299		9.8000		7.8180
		20%		23.73	1.865		2708		0.3374		0.1001		44.7000		7.5440
		30%		23.63	4.803		3946		0.7408		0.2051		115.0000		6.4420
		40%		23.53	9.285		5007		1.2049		0.3214		222.2000		5.4240
		L%		23.42	17.318		6131		1.8117		0.4789		413.5000		4.3840
		60%		23.5	28.207		7158		2.4977		0.6519		671.5000		3.7200
		70%		23.62	40.854		8027		3.1604		0.8238		969.3000		3.2610
		80%		23.67	58.755		8840		3.8649		1.0092		1388.3000		2.7840
		90%		23.	73.77		9411		4.3715		1.1529		1736.0000		2.5180
		100%		23.7	90.573		9878		4.8917		1.2935		2121.3000		2.3060

Notitia input.
